Name: Diesel Engine Vacuum Assisted Priming Pump 6 Inch DRY Priming Mechanical Pump
Brand: Ocean Pump Co., Ltd.
SKU: GXD66S12QJWP2.3D40E200
Availability: InStock

Home Products Vacuum Assisted Priming Pump

Diesel Engine Vacuum Assisted Priming Pump 6 Inch DRY Priming Mechanical Pump

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	OCEANPUMP
Model Number:	GXD66S12QJWP2.3D40E200

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM, OBM
Application:	Irrigation And Agriculture	Power Source:	Diesel Engine
Pressure:	High Pressure	Structure:	Single-stage Pump
Outlet Size:	6 Inch	Voltage:	240V / Customized
Power:	36kw	Application:	Priming Pump
Theory:	Vacuum Assisted Priming Pump	Material:	Stainless Steel;cast Iron
Motor:	According To The Customer To Choose	Feature:	Maintenance
Type:	Horizontal Centrifugal	Impeller Type:	Open
Inlet/Outlet:	150mm(6"))/150mm(6")

Products Description

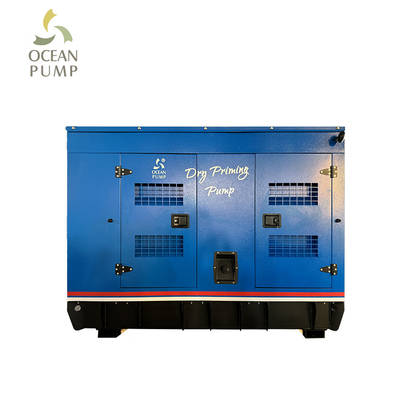

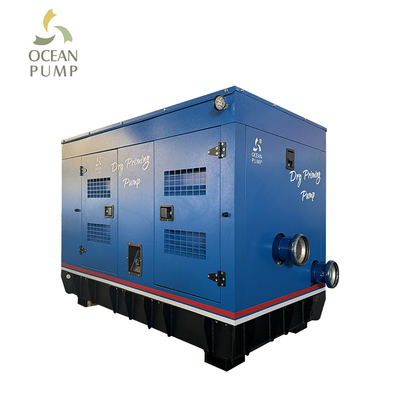

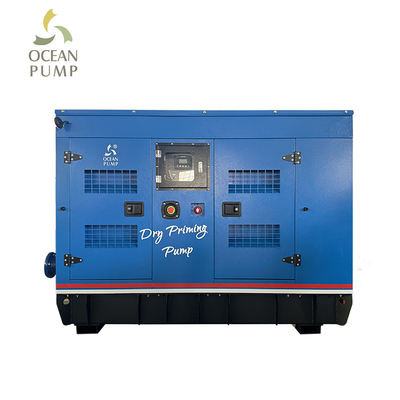

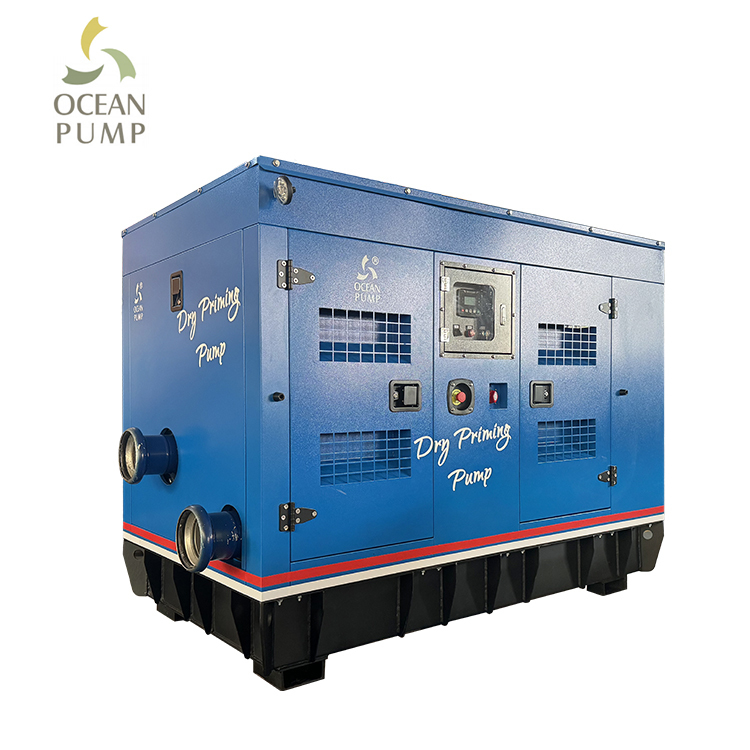

DRY Priming Pump (Silent Type)

Inlet Outlet Caliber	1 50MM(6")
Max Flow	350m³/H(1541GPM)
Max Head	30M(100FT)
Speed	1500R/MIN
Pump Cover Before Import	65-45-12
Pump	65-45-12
Front Cover Plate Of Impeller	65-45-12
Impeller	65-45-12
Rear Pump Cover	65-45-12
Rear Cover Plate	65-45-12
Shaft	S42000
Bearing Housing	NO.35
Drive End Bearing Cover	NO.35
Non Drive End Bearing Cover	NO.35
Mechanical Seal	Double sealed alloy machine seal

Engine Data

Diesel Engine	WP2.3D40E200
Speed(R/Min)	1500
Prp(Kw)	36
Esp(Kw)	40
N°Of Cylinders/Valves	4/8
Borexstroke(Mm)	89x92
Displagement(L)	2.3
Fuel System	Mechanical Pump
Aspiration	Turbocharged
Emission Standard	NON

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Application Scenarios

Product classification

Company Profile

Exhibition

Packing and transportation

FAQ

1. Who Are We? We are based in Zhejiang, China, start from 2015,sell to Domestic Market(70.00%),North America(8.00%),South America(5.00%),Oceania(5.00%),Mid East(5.00%),Southeast Asia(3.00%),Africa(2.00%),South Asia(2.00%). There are total about 51-100 people in our office. 2. How Can We Guarantee Quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What Can You Buy From Us? Diesel Engine Water Pump,Submersible Sewage Pump,Gear Pumps,Chemical Pump,Self Priming Pump 4. Why Should You Buy From Us Not From Other Suppliers? Zhejiang Ocean Pump Co., Ltd supply pump widely which used in chemical, petroleum, pharmaceutical, electroplating, environmental protection, printing and dyeing, food and other industries. The company has a professional technical team, R & D. 5. What Services Can We Provide?

Accepted Delivery Terms: FOB,CIF,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Welcome To Contact Us For More Product Information >Return Home<
