GXD Series Water Pump Head Diesel Engine High Flow Agricultural Irrigation Pumps Diesel Engine Vacuum-Assisted Priming Pump

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	OCEAN PUMP
Certification:	CE/ISO9001
Model Number:	GXD66S10

Contact Now

Detailed Product Description

Warranty:	3 Years	Customized Support:	OEM, ODM
Application:	Commercial Buildings	Power Source:	Diesel Engine OR ELECTRICAL MOTOR
Pressure:	High Pressure	Structure:	Single-stage Pump
Outlet Size:	6 Inch	Voltage:	Other
Product Name:	Self Priming Sewage Trash Pump Head	Feature:	High Efficiency
Application:	Construction \| Industrial \| Municipal \| Mining	Material:	Cast Iron
Model:	GXD66S10	Advantage:	Long Working Life
Shipping:	Sea	Capacity:	450m³/h
HEAD:	25m

Products Description

Dry Suction Drainage Pump

1.Brief Introduce

GX cutting dry suction non clogging sewage pump, with a high flow dry suction sewage centrifugal pump that is resistant to dry wear, non clogging, and with cutting. No need to water before use, it can easily self suck.
The open impeller design of this pump has a large impurity throughput and a maximum impurity throughput of 95mm. The GX series is divided into GXD (low head), GX (medium head), and GXG (high head) series, which are suitable for different scenarios and are respectively applied to large-scale drainage, long-distance water supply, municipal sewage treatment, etc. Unique fluid structure design with cutting function, which can effectively cut the sewage from impurity fibers and avoid entanglement with the impeller. The pump chamber is also designed with a convenient cleaning port for easy maintenance. The pump head adopts a direct connection structure, with stable performance and compact structure. It can be matched with any brand of diesel engine.

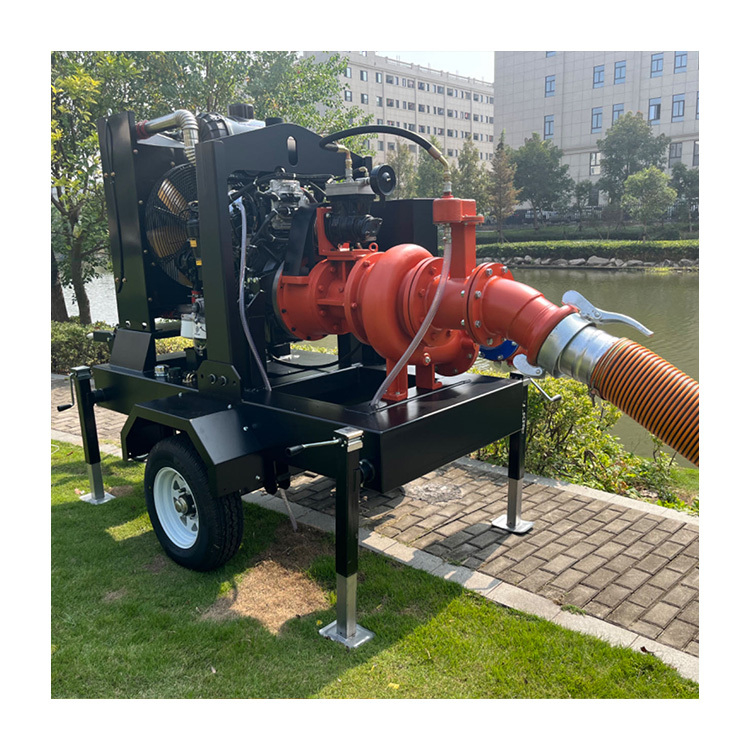

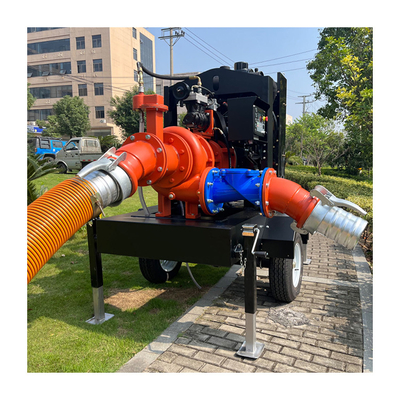

Our company can also provide complete sets of complete machine products, including various types of trailers, traction systems, prying, mobile lighting systems, etc. Multiple options are available for customers to choose from. Can achieve integrated operation of drainage, lighting, and mobile pump truck.

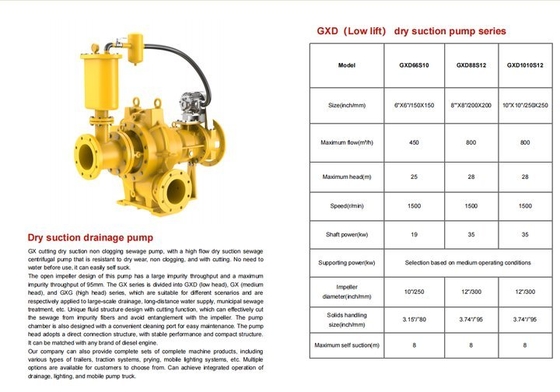

GXD（Low lift） dry suction pump series

Model	GXD66S10	GXD88S12	GXD1010S12
Size(inch/mm)	6"X6"/150X150	8'"X8"/200X200	10"X10"/250X250
Maximum flow(m³/h)	450	800	800
Maximum head(m)	25	28	28
Speed(r/min)	1500	1500	1500
Shaft power(kw)	19	35	35
Supporting power(kw)	Selection based on medium operating conditions
Impeller diameter(inch/mm)	10"/250	12"/300	12"/300
Solids handling size(inch/mm)	3.15“/”80	3.74“/”95	3.74“/”95
Maximum self suction(m)	8	8	8

Application Scenarios
