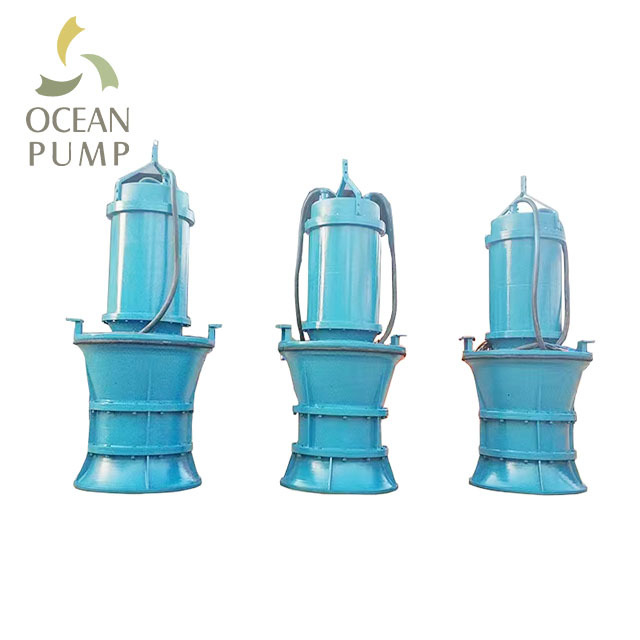

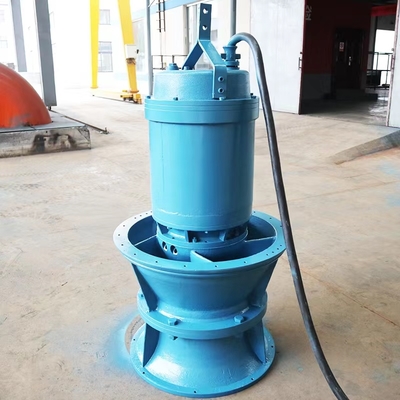

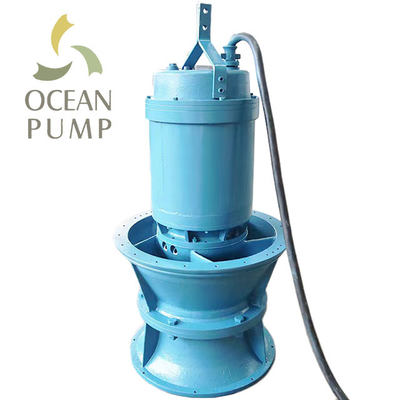

Name: Vertical Axial Flow Pump Axial Flow Pump Vertical Submersible Sewage Pump
Brand: Ocean Pump Co., Ltd.
SKU: ZQB HQB
Availability: InStock

Home Products submersible pump

Vertical Axial Flow Pump Axial Flow Pump Vertical Submersible Sewage Pump

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	OCEANPUMP
Model Number:	ZQB HQB

Contact Now

Detailed Product Description

Warranty:	3 Years	Customized Support:	OEM, ODM, OBM
Application:	Industrial Boilers	Horsepower:	10HP-1000HP
Power Source:	Electric	Pressure:	0.1-1.8bar
Structure:	Axial Flow Pump	Cable Length:	10 M
Outlet Size:	14''~960''	Voltage:	380V/400V/440V/660V/6000V/10000VOr Custom-made
Power:	50 HZ Or 60 Hz	Implementation Standard:	ISO2548/C ISO3555/B
Motor:	Waterproof Motor	Protection Level:	IP68
Hermetic Seal:	Mechanical Seal	Product Name:	Submersible Sewage Pump
Warranty:	2 Years	Standard Or Nonstandard:	Standanrd
Material:	Cast Iron	Color:	Blue

Products Description

ZQB HQB Ton Excavator

ZQB type submersible axial-flow pump and HQB type submersible mised-flow pump are the renwal proudusts taking the place of traditional pump motor unit,with following visual features: 1.By reason that the pump can run in water ,it is helpful for simplifying the earth work and building engineering of pumping station. 2.For integration of water pump and motor,it is umwanted to perform axis-to-center assembly procedure on site,very converient and expeditions to install. 3.Low noise,no high temperature brought in the pumping station,it is available in building full underground pumping station according to requirements to keep the ground environment. 4.Converience in operation,it is not necessary to lubricate the rubber bearing of bump prior to turning on the machine,in addition,remote control and auto control are realized. 5.Can solve the flood resistance problem of the river and with lake with fluctuation of water level. 6.ZQB.HQB type submersible axial-flow pump is suitable for the occasion of low head and large flow,and HQB type submersible mixed-flow pump is of high efficiency and perfect cavitation performance,suitable for the occasions of large fluctuation of water level and high head.The transmission medium is the water of other liquil similar to the water on physical and chemical property ,the max temperature of transmitted liquid is 40℃

No	Blade Angle	model	Flow m3/h	Head m	Speed r/min	Power KW
1	-2º	350ZQB-70	684	6.9	1450	18.5
								828	4.77
								900	3.42
2	0º			763		8.67		30
							957		6.21
							1090		3.59
3	+2º			971		8.3
							1115		6.36
							1250		4.52
4	+4º			1170		7.8		37
							1314		6.3
							1440		4.71
5	+6º			1314		8.1		40
							1430		6.94
							1540		5.8

COMPACT STRUCTURE

EASY TO INSTALL LOW NOISE SAVING PROJECT COST LONG SERVICE LIFE

Right elevation

Left elevation

Front elevation

Application Scenarios

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Product classification

Company Profile

Exhibition

Packing and transportation

FAQ

1. Who Are We? We are based in Zhejiang, China, start from 2015,sell to Domestic Market(70.00%),North America(8.00%),South America(5.00%),Oceania(5.00%),Mid East(5.00%),Southeast Asia(3.00%),Africa(2.00%),South Asia(2.00%). There are total about 51-100 people in our office. 2. How Can We Guarantee Quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What Can You Buy From Us? Diesel Engine Water Pump,Submersible Sewage Pump,Gear Pumps,Chemical Pump,Self Priming Pump 4. Why Should You Buy From Us Not From Other Suppliers? Zhejiang Ocean Pump Co., Ltd supply pump widely which used in chemical, petroleum, pharmaceutical, electroplating, environmental protection, printing and dyeing, food and other industries. The company has a professional technical team, R & D. 5. What Services Can We Provide?

Accepted Delivery Terms: FOB,CIF,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
