Name: Cheap Price Very Good Quality Slurry Pump With Diesel Engine Drive
Brand: Ocean Pump Co., Ltd.
SKU: T-8
Availability: InStock

Home Products Self-priming Pumps

Cheap Price Very Good Quality Slurry Pump With Diesel Engine Drive

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Ocean pump
Model Number:	T-8

Contact Now

Detailed Product Description

Warranty:	1 YEAR	Customized Support:	OEM
Application:	Commercial Buildings	Horsepower:	124HP
Power Source:	Electric	Pressure:	High Pressure
Structure:	Single-stage Pump	Cable Length:	NO
Outlet Size:	200MM	Voltage:	380V
Power:	93KW	Usage:	Water
Application:	Sewage	Power:	Electric
Fuel:	Diesel	Pressure:	Low Pressure
Standard Or Nonstandard:	Standard	Theory:	Centrifugal Pump
Material:	Cast Iron/Stainless Steel	Certificate:	ISO9001:2008
Type:	Horizontal

Products Description

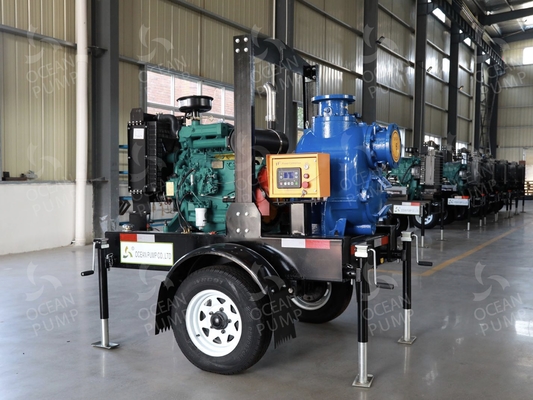

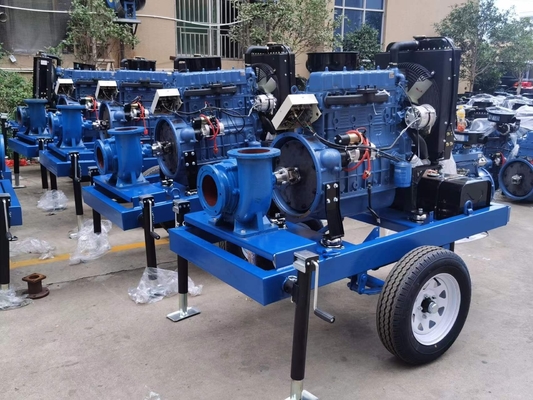

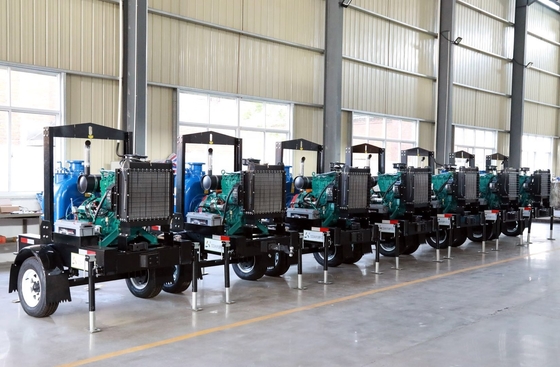

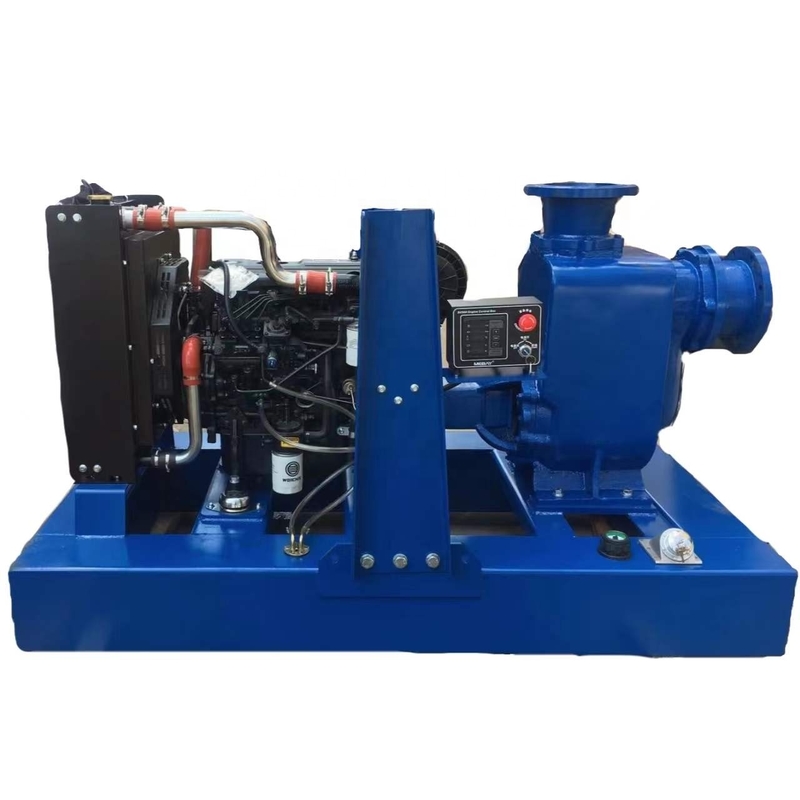

High flow rate T series 8 inch diesel engine self priming water pump

1.Brief Introduce T series submersible sewage pump have the unique structure is a newly developed product on the basis of advanced technology imported from overseas , it adopts oversea excellent hydraulic model. And it has advantages of high efficiency,compact structure, high intensity, good performance and wide application etc. The shaft seal adopts mechanical seal or packing seal.

2.Advantages

1.High and Dry mounting for fast and easy service.

2.Clogging is kept to a minimum,so downtime is virtually eliminated!

3. Service is simple , fast and economical

4. Automatic priming means dependable performance

5.high efficency and energy saving

6.convenient usage and maintenance etc compared with domestic similar product.

3.Performance Table
MODEL	size	MAX FLOW (m3/H )	Max (m)	Suction Lift ( m )	MAX SOLIDS mm
T-2	2 inch	46	36	7.6	44.45
T-3	3 inch	107	35	7.6	63.5
T-4	4 inch	163	36	7.6	76.2
T-6	6 inch	330	33	7.6	76.2
T-8	8 inch	600	34	7	76.2
T-10	10 inch	775	40	6.7	76.2
T-12	12 inch	1275	42	4.9	50
U-3	3inch	85	62	7.6	20.63
U-4	4 inch	148	60	5.2	28.57
U-6	6 inch	308	58	4.5	31.75

Product Application

T series self suction sewage pump, self suction drainage pump unit and diesel engine mobile trailer are new international self suction sewage units. The utility model is suitable for outdoor use. The utility model has the advantages of high self suction, no blockage, convenient movement and simple operation without the power supply of the city power supply and the sewage impurities.

Main Features

1. Easy to install and easy to operate, in the control cabinet display period, you can directly view the pump and diesel engine operating parameters
2. Sewage capacity is large, the maximum amount of impurities through 76.2mm
3. Strong self-priming capacity, up to 7.6 meters
4. Design user-friendly, quick to the debris port, the fastest speed can troubleshoot.
5. When the equipment is out of order, the control cabinet will alarm automatically and show the cause of the trouble. Ensure safe operation of equipment.

Detailed Images

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.

Machine Parts

Name: Diesel engine

Brand: deutz

Original: China

Inline, 3 cylinder, four stroke, self suction, direct injection fuel system

Main Features

Name: Control cabinet
Brand: OCEAN
Original: China
Control the starting and stopping of diesel engine, check the water temperature, oil temperature, oil pressure, speed of diesel engine, etc.. Multi language: English, Spanish, Chinese, Russian, Arabic, polish, etc.

Machine Parts

Name: Exclude sundries
Brand: OCEAN PUMP
Original: CHINA
Loosen the wrench on both sides to remove the blockage in the pump.

Main Features

Name: Mechanical seal
Brand: Burgmann
Original: Germany
The container type mechanical seal adopts wear-resistant alloy and fluorine rubber. The service life is long, and the replacement is convenient.

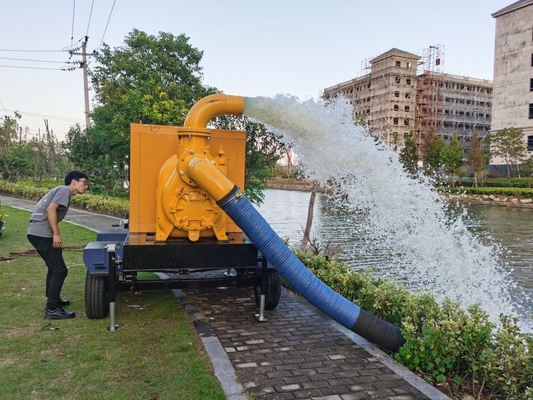

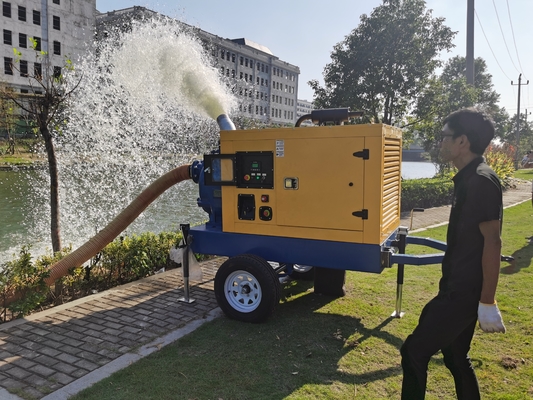

Application Scenarios

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Product classification

Company Profile

Exhibition

Packing and transportation

FAQ

1. Who Are We? We are based in Zhejiang, China, start from 2015,sell to Domestic Market(70.00%),North America(8.00%),South America(5.00%),Oceania(5.00%),Mid East(5.00%),Southeast Asia(3.00%),Africa(2.00%),South Asia(2.00%). There are total about 51-100 people in our office. 2. How Can We Guarantee Quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What Can You Buy From Us? Diesel Engine Water Pump,Submersible Sewage Pump,Gear Pumps,Chemical Pump,Self Priming Pump 4. Why Should You Buy From Us Not From Other Suppliers? Zhejiang Ocean Pump Co., Ltd supply pump widely which used in chemical, petroleum, pharmaceutical, electroplating, environmental protection, printing and dyeing, food and other industries. The company has a professional technical team, R & D. 5. What Services Can We Provide?

Accepted Delivery Terms: FOB,CIF,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
