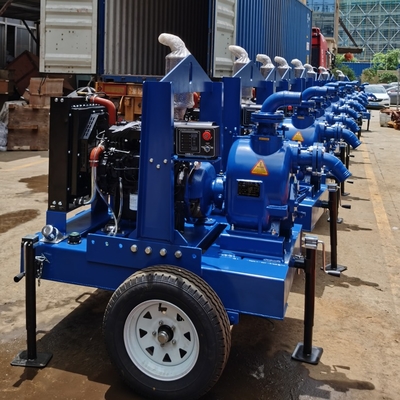

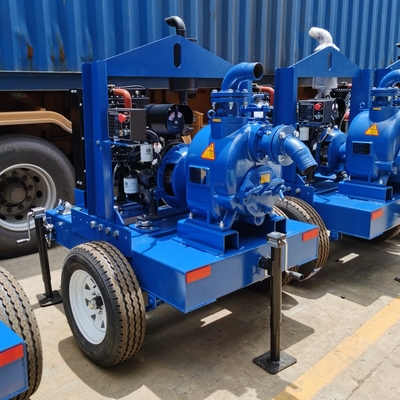

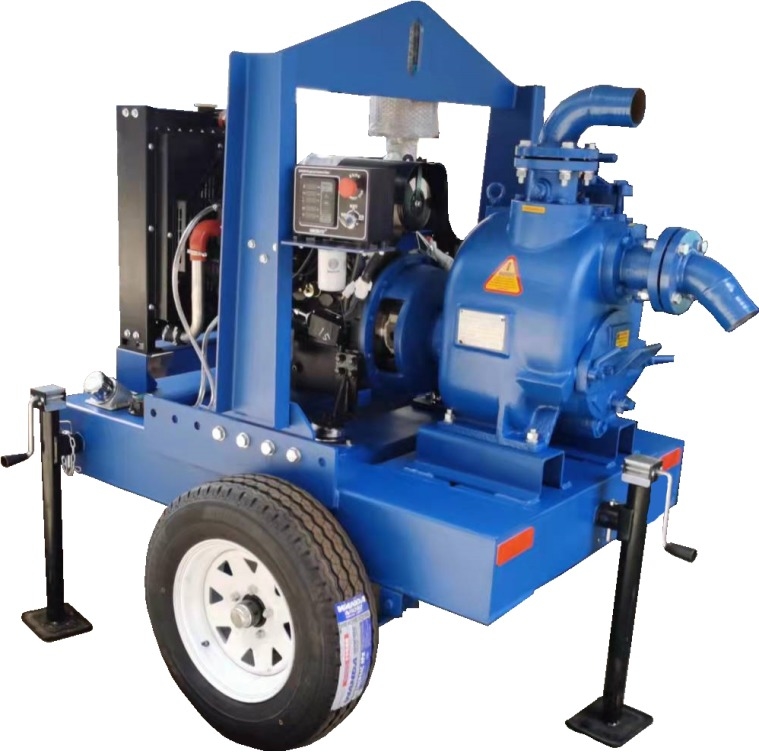

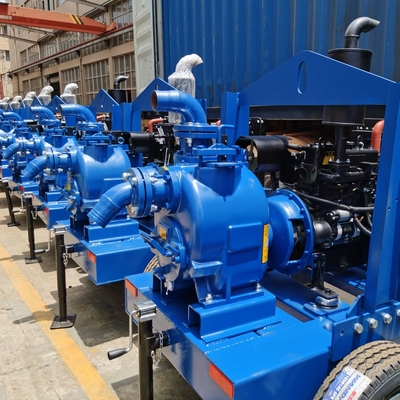

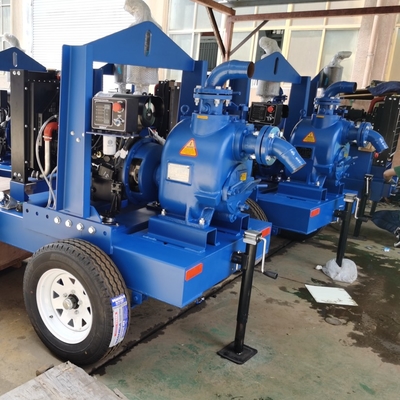

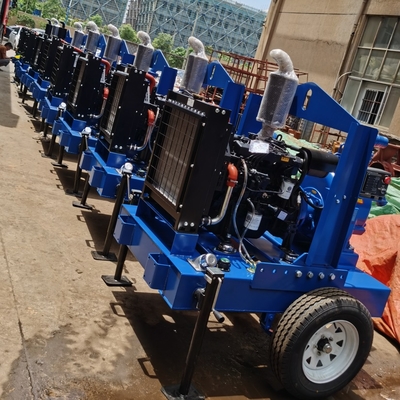

Name: Ocean Pump New Trailer Type Diesel Engine Self-Priming Water Pump
Brand: Ocean Pump Co., Ltd.
SKU: T-3-TC-WP2.3D36E201
Availability: InStock

Home Products Self-priming Pumps

Ocean Pump New Trailer Type Diesel Engine Self-Priming Water Pump

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	OCEAN PUMP
Model Number:	T-3-TC-WP2.3D36E201

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM, OBM
Application:	Mining Industry	Horsepower:	48.6
Power Source:	Diesel Engine	Pressure:	High Pressure
Structure:	Single-stage Pump	Outlet Size:	3 Inch
Voltage:	Other	Power:	36 KW/1800 Prm
Diesel Engine Brand:	Weichai	Max Flow:	100 M³/h
Max Head:	25 M	Material:	Cast Iron/ Stainless Steel 304/316
Max Solids:	76.2 Mm	Cooling Mode:	Air-cooled Four Stroke
Self-priming Height:	7.6 M	Self-imbibition Time:	60S
Heavy Duty Trailer:	2 Wheel Heavy Trailer With Tow	Fuel Tank:	250L

Products Description

High flow rate T series diesel engine self priming water pump

1.Brief Introduce T series submersible sewage pump have the unique structure is a newly developed product on the basis of advanced technology imported from overseas , it adopts oversea excellent hydraulic model. And it has advantages of high efficiency,compact structure, high intensity, good performance and wide application etc. The shaft seal adopts mechanical seal or packing seal.

2.Advantages

1.High and Dry mounting for fast and easy service.

2.Clogging is kept to a minimum,so downtime is virtually eliminated!

3. Service is simple , fast and economical

4. Automatic priming means dependable performance

5.high efficency and energy saving

6.convenient usage and maintenance etc compared with domestic similar product.

3.Performance Table
MODEL	size	MAX FLOW (m3/H )	Max (m)	Suction Lift ( m )	MAX SOLIDS mm
T-2	2 inch	46	36	7.6	44.45
T-3	3 inch	107	35	7.6	63.5
T-4	4 inch	163	36	7.6	76.2
T-6	6 inch	330	33	7.6	76.2
T-8	8 inch	600	34	7	76.2
T-10	10 inch	775	40	6.7	76.2
T-12	12 inch	1275	42	4.9	50
U-3	3inch	85	62	7.6	20.63
U-4	4 inch	148	60	5.2	28.57
U-6	6 inch	308	58	4.5	31.75

Application Scenarios

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Product classification

Company Profile

Exhibition

Packing and transportation

FAQ

1. Who Are We? We are based in Zhejiang, China, start from 2015,sell to Domestic Market(70.00%),North America(8.00%),South America(5.00%),Oceania(5.00%),Mid East(5.00%),Southeast Asia(3.00%),Africa(2.00%),South Asia(2.00%). There are total about 51-100 people in our office. 2. How Can We Guarantee Quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What Can You Buy From Us? Diesel Engine Water Pump,Submersible Sewage Pump,Gear Pumps,Chemical Pump,Self Priming Pump 4. Why Should You Buy From Us Not From Other Suppliers? Zhejiang Ocean Pump Co., Ltd supply pump widely which used in chemical, petroleum, pharmaceutical, electroplating, environmental protection, printing and dyeing, food and other industries. The company has a professional technical team, R & D. 5. What Services Can We Provide?

Accepted Delivery Terms: FOB,CIF,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
