Name: Professional Manufacture Well Point Dry Prime Priming Assisted Dry Priming Pump
Brand: Ocean Pump Co., Ltd.
SKU: T
Availability: InStock

Home Products Priming Assisted (Dry prime) Pump

Professional Manufacture Well Point Dry Prime Priming Assisted Dry Priming Pump

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	OCEAN PUMP
Certification:	CE/ISO9001
Model Number:	T

Contact Now

Detailed Product Description

Warranty:	3 Years	Customized Support:	OEM, ODM
Application:	Commercial Buildings	Power Source:	Diesel Engine OR ELECTRICAL MOTOR
Pressure:	High Pressure	Structure:	Single-stage Pump
Voltage:	Other	Product Name:	Self Priming Sewage Trash Pump
Feature:	High Efficiency	Application:	Construction \| Industrial \| Municipal \| Mining
Material:	Cast Iron	Model:	T-6
Advantage:	Long Working Life	Shipping:	Sea
Capacity:	330M3/H	HEAD:	25M

Products Description

Equipment introduction：

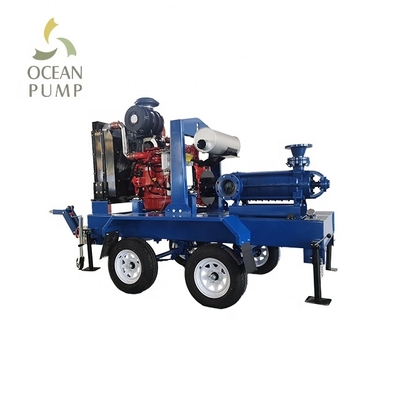

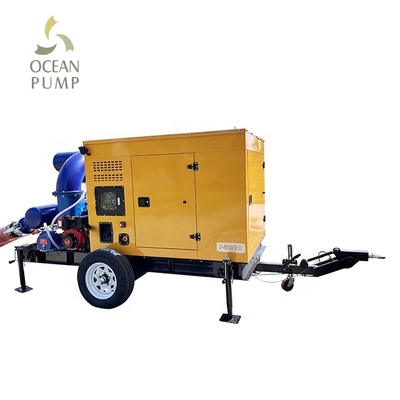

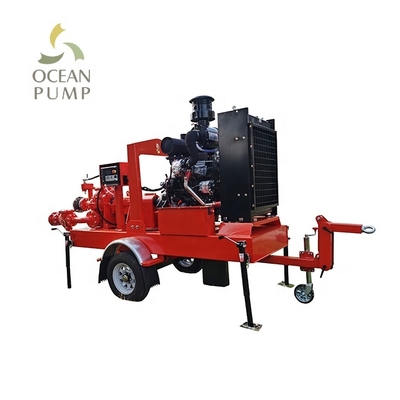

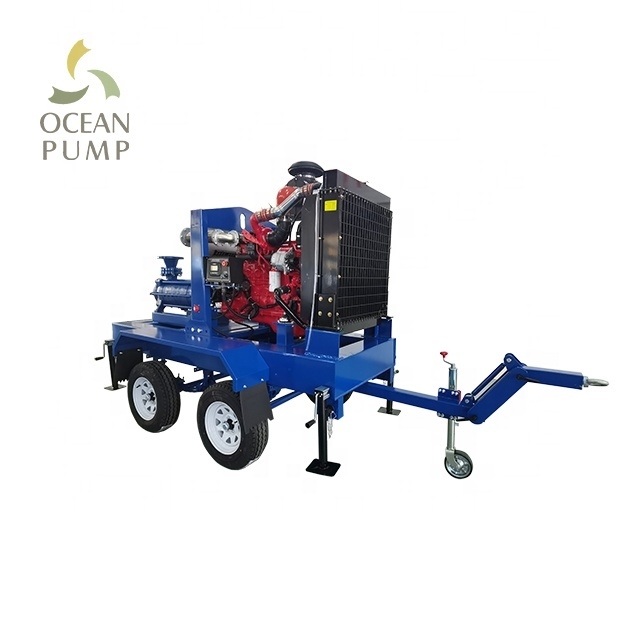

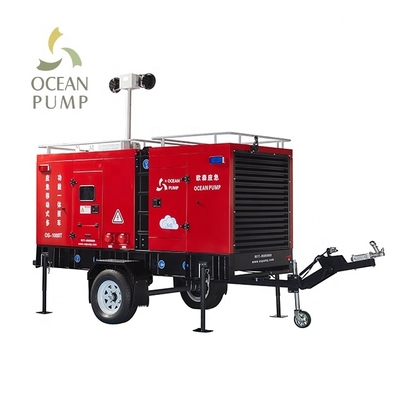

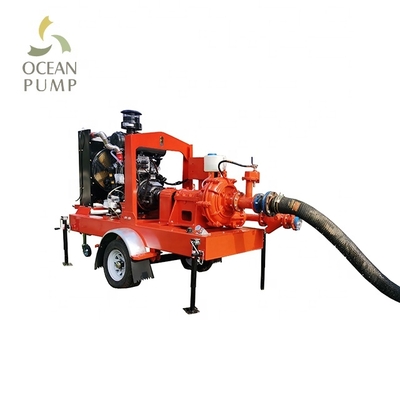

Dry priming pump trailer, using wear-resistant mine pump with diesel engine, professional transportation of water containing hard particles and particle impurities. Support diesel engine drive,no external power supply required. Equipped with mobile trailers, it can support many different types of towing, suitable for many different types of tractors. Mainly used for: mining or sand mining and other media particles, granular hard water inhalation and discharge.

Product features:

1. Large volume: the impeller adopts a wide groove open impeller, which is suitable for all kinds of particles to pass through. 2. Wear resistance: the main moving parts such as pump casing and impeller are made of wearresistant alloy materials. It is more wear-resistant than ordinary cast iron and has a longer service life. 3. Strong self-priming ability: Venturi vacuum assist system, no artificial irrigation, self-priming height 6 meters vertical or 15 meters horizontal. 4. Easy to move: the pump truck adopts 2 or 4 wheel tractor, and the front traction can choose different types of traction hooks, which can match different types of vehicle traction; It can also be made into skid-mounted. Optional according to the user. 5. Long working time: equipped with large capacity oil tank, which can be used continuously for a long time. 6. Control system: The control system automatically monitors the diesel engine operation data,monitoring oil temperature, oil pressure, water temperature, speed, etc. If there is abnormal automatic alarm stop. Or optional with remote control system, network coverage can realize remote control.

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Title goes here.

DRY PRIMING PUMP

Product Application

T series self suction sewage pump, self suction drainage pump unit and diesel engine mobile trailer are new international self suction sewage units. The utility model is suitable for outdoor use. The utility model has the advantages of high self suction, no blockage, convenient movement and simple operation without the power supply of the city power supply and the sewage impurities.

Main Features

1. Easy to install and easy to operate, in the control cabinet display period, you can directly view the pump and diesel engine operating parameters
2. Sewage capacity is large, the maximum amount of impurities through 76.2mm
3. Strong self-priming capacity, up to 7.6 meters
4. Design user-friendly, quick to the debris port, the fastest speed can troubleshoot.
5. When the equipment is out of order, the control cabinet will alarm automatically and show the cause of the trouble. Ensure safe operation of equipment.

Detailed Images

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.

Machine Parts

Name: Diesel engine

Brand: deutz

Original: China

Inline, 3 cylinder, four stroke, self suction, direct injection fuel system

Main Features

Name: Control cabinet
Brand: OCEAN
Original: China
Control the starting and stopping of diesel engine, check the water temperature, oil temperature, oil pressure, speed of diesel engine, etc.. Multi language: English, Spanish, Chinese, Russian, Arabic, polish, etc.

Machine Parts

Name: Exclude sundries
Brand: OCEAN PUMP
Original: CHINA
Loosen the wrench on both sides to remove the blockage in the pump.

Main Features

Name: Mechanical seal
Brand: Burgmann
Original: Germany
The container type mechanical seal adopts wear-resistant alloy and fluorine rubber. The service life is long, and the replacement is convenient.

Application Scenarios
