Name: Efficient Non-Clogging Diesel Engine Water Pump Solid Wastewater Self Priming Pump
Brand: Ocean Pump Co., Ltd.
SKU: 2-25
Availability: InStock

Home Products Priming Assisted (Dry prime) Pump

Efficient Non-Clogging Diesel Engine Water Pump Solid Wastewater Self Priming Pump

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	OCEAN PUMP
Model Number:	2-25

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM, ODM, OBM
Application:	Automotive Industry	Horsepower:	40~150
Power Source:	Electric	Pressure:	`1-6 Bar
Structure:	Single-stage Pump	Cable Length:	No
Outlet Size:	2-25inch	Voltage:	220/380/440v
Power:	15-210kw	Theory:	Centrifugal Pump
Standard Or Nonstandard:	Standard	Material:	Cast Iron
Usage:	Sewage	Application:	Irrigation, Drainage, Sewage Discharge And Emergency Drainage
Power:	Diesel Engine	Product Name:	Water Pump
Pump Type:	Self-priming Water Pump

Products Description

1.Product Application

T series self suction sewage pump, self suction drainage pump unit and diesel engine mobile trailer are new international self suction sewage units. The utility model is suitable for outdoor use. The utility model has the advantages of high self suction, no blockage, convenient movement and simple operation without the power supply of the city power supply and the sewage impurities.

2.Main Features

1. Easy to install and easy to operate, in the control cabinet display period, you can directly view the pump and diesel engine operating parameters.
2. Sewage capacity is large, the maximum amount of impurities through 76.2mm.
3. Strong self-priming capacity, up to 7.6 meters.
4. Design user-friendly, quick to the debris port, the fastest speed can troubleshoot.
5. When the equipment is out of order, the control cabinet will alarm automatically and show the cause of the trouble. Ensure safe operation of equipment.

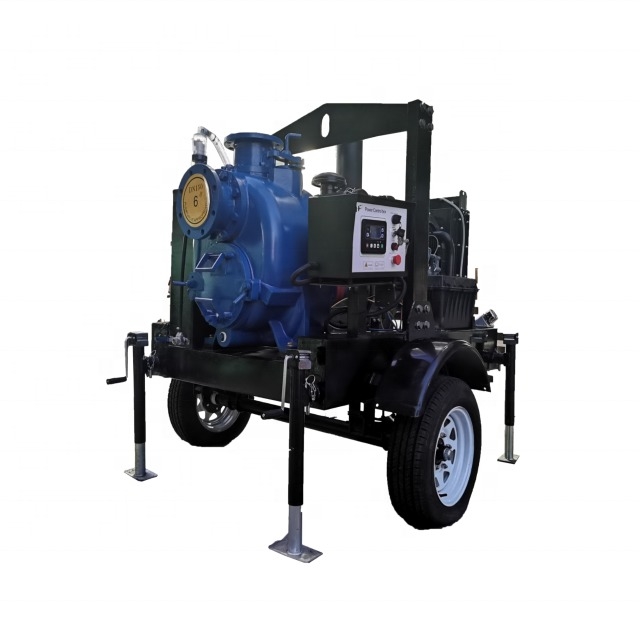

TECHNICAL SPECIFICATION OF T-6 MOVABLE DRAINAGE UNIT
T-6 PUMP	Max Flow	325m3/h
		Max Head	32m
		Max Solide	76.2mm (3'')
		Self-priming	7.6m
		Impeller dia	314.32mm
		R.P.M	1500rpm
Material	Pump casing	Cast iron HT250
		Impeller	Nodular cast iron
		Shaft	40CR
Engine	Model	D226B-3D
		No. of cylinders	3
		Cooling method	water-cooling
		Speed control type	Mechanical speed regulation
		Start-up mode	DC start, and equipped with silicon rectifier charging generator
Trailer	Total engine displacement	3.12L
		Tyre	2pcs
		Support foot	4pcs
		Tank capacity	80L
		load	2000KG

Application Scenarios

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Product classification

Company Profile

Exhibition

Packing and transportation

FAQ

1. Who Are We? We are based in Zhejiang, China, start from 2015,sell to Domestic Market(70.00%),North America(8.00%),South America(5.00%),Oceania(5.00%),Mid East(5.00%),Southeast Asia(3.00%),Africa(2.00%),South Asia(2.00%). There are total about 51-100 people in our office. 2. How Can We Guarantee Quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What Can You Buy From Us? Diesel Engine Water Pump,Submersible Sewage Pump,Gear Pumps,Chemical Pump,Self Priming Pump 4. Why Should You Buy From Us Not From Other Suppliers? Zhejiang Ocean Pump Co., Ltd supply pump widely which used in chemical, petroleum, pharmaceutical, electroplating, environmental protection, printing and dyeing, food and other industries. The company has a professional technical team, R & D. 5. What Services Can We Provide?

Accepted Delivery Terms: FOB,CIF,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Welcome To Contact Us For More Product Information >Return Home<
