Name: Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump
Brand: Ocean Pump Co., Ltd.
SKU: T -3
Availability: InStock

Home Products Self-priming Pumps

Suction Stroke 7.6 M Electric Self-Priming Pump 3 Inch Electric Motor Driven Self Suction Sewage Pump

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	OCEANPUMP
Model Number:	T -3

Contact Now

Detailed Product Description

Warranty:	1 Year	Customized Support:	OEM
Application:	Water Treatment Solutions	Power Source:	Electric
Pressure:	Low Pressure	Structure:	Horizontal Pump
Voltage:	380V Or 400V Or 440V Or 660V	Standard Or Nonstandard:	Standard
Theory:	Centrifugal Pump	Material:	Cast Iron
Motor:	According To The Customer To Choose	Feature:	Maintenance
Certificate:	ISO9001:2008	Impeller Type:	Open
Max.solids:	63.5MM	Self-priming:	7.6MM

Products Description

Product Application

T series self suction sewage pump, self suction drainage pump unit and diesel engine mobile trailer are new international self suction sewage units. The utility model is suitable for outdoor use. The utility model has the advantages of high self suction, no blockage, convenient movement and simple operation without the power supply of the city power supply and the sewage impurities.

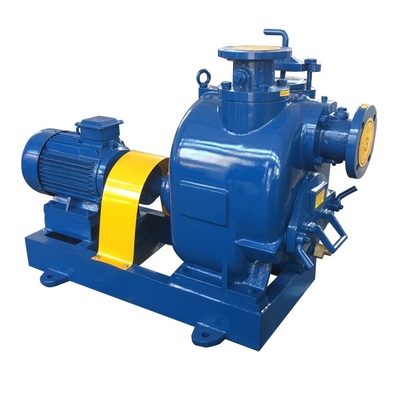

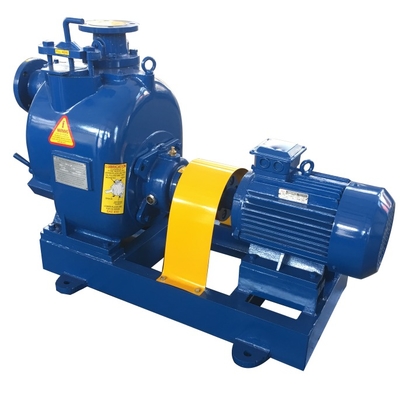

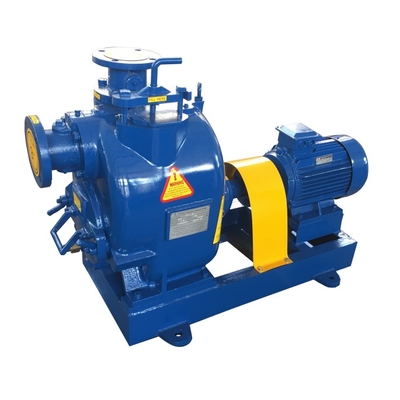

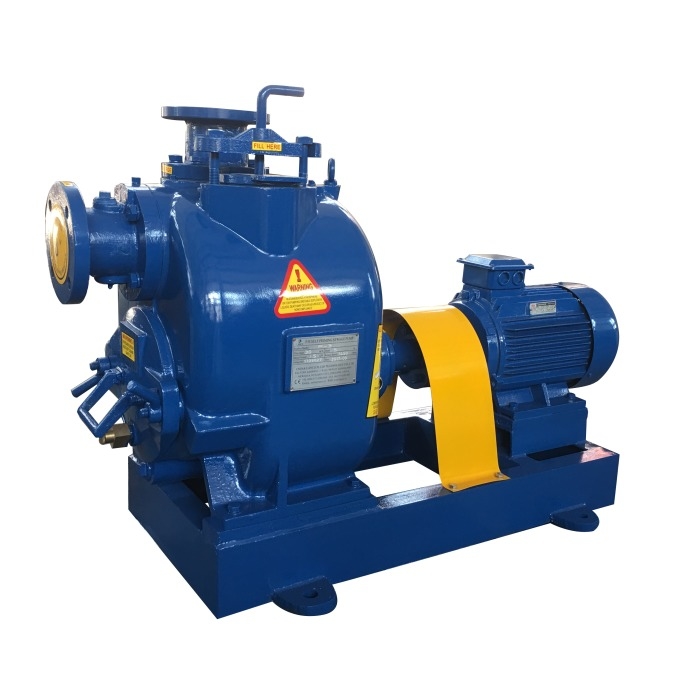

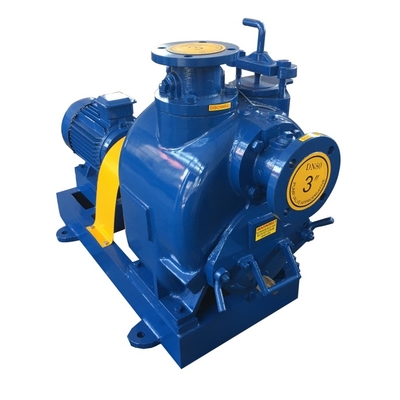

T series 3 inch electric motor driven self suction sewage pump, suction stroke 7.6 m Electric self-priming pump
T-6 PUMP	Max Flow	100m3/h
		Max Head	35m
		Max Solide	63.5mm (3'')
		Self-priming	7.6m
		Impeller dia	222.25mm
		R.P.M	650~1500rpm
Material	Pump casing	Cast iron HT250
		Impeller	Nodular cast iron
		Shaft	40CR
Motor	Model	1-20HP
		No. of cylinders	3
		Cooling method	Air cooling
		Protection level	IP54
		Voltage	380V or 400V or 440V or 660V
		Frequency	50HZ or 60HZ

Main Features

1. Easy to install and easy to operate, in the control cabinet display period, you can directly view the pump and diesel engine operating parameters
2. Sewage capacity is large, the maximum amount of impurities through 63.5mm
3. Strong self-priming capacity, up to 7.6 meters
4. Design user-friendly, quick to the debris port, the fastest speed can troubleshoot.
5. When the equipment is out of order, the control cabinet will alarm automatically and show the cause of the trouble. Ensure safe operation of equipment.

Product Application

Main Features

1. Easy to install and easy to operate, in the control cabinet display period, you can directly view the pump and diesel engine operating parameters
2. Sewage capacity is large, the maximum amount of impurities through 76.2mm
3. Strong self-priming capacity, up to 7.6 meters
4. Design user-friendly, quick to the debris port, the fastest speed can troubleshoot.
5. When the equipment is out of order, the control cabinet will alarm automatically and show the cause of the trouble. Ensure safe operation of equipment.

Detailed Images

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.

Machine Parts

Name: Diesel engine

Brand: deutz

Original: China

Inline, 3 cylinder, four stroke, self suction, direct injection fuel system

Main Features

Name: Control cabinet
Brand: OCEAN
Original: China
Control the starting and stopping of diesel engine, check the water temperature, oil temperature, oil pressure, speed of diesel engine, etc.. Multi language: English, Spanish, Chinese, Russian, Arabic, polish, etc.

Machine Parts

Name: Exclude sundries
Brand: OCEAN PUMP
Original: CHINA
Loosen the wrench on both sides to remove the blockage in the pump.

Main Features

Name: Mechanical seal
Brand: Burgmann
Original: Germany
The container type mechanical seal adopts wear-resistant alloy and fluorine rubber. The service life is long, and the replacement is convenient.

Application Scenarios

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Product classification

Company Profile

Exhibition

Packing and transportation

FAQ

1. Who Are We? We are based in Zhejiang, China, start from 2015,sell to Domestic Market(70.00%),North America(8.00%),South America(5.00%),Oceania(5.00%),Mid East(5.00%),Southeast Asia(3.00%),Africa(2.00%),South Asia(2.00%). There are total about 51-100 people in our office. 2. How Can We Guarantee Quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What Can You Buy From Us? Diesel Engine Water Pump,Submersible Sewage Pump,Gear Pumps,Chemical Pump,Self Priming Pump 4. Why Should You Buy From Us Not From Other Suppliers? Zhejiang Ocean Pump Co., Ltd supply pump widely which used in chemical, petroleum, pharmaceutical, electroplating, environmental protection, printing and dyeing, food and other industries. The company has a professional technical team, R & D. 5. What Services Can We Provide?

Accepted Delivery Terms: FOB,CIF,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
